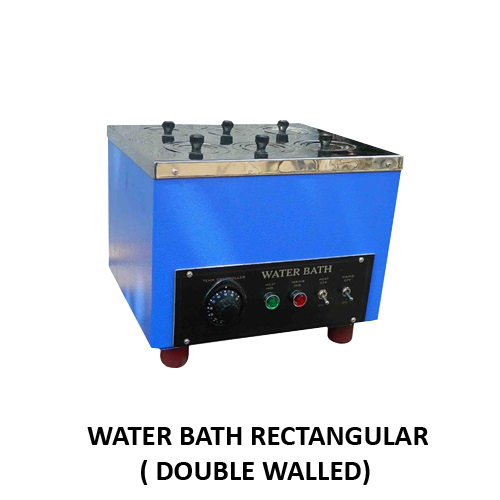

Water Bath Rectangular ( Double Walled)

Model: SSI 131

Double Walled, inner made of 304 Stainless Steel, Outer made of Mild Steel duly powder coated. Top made of Stainless Steel with 75 mm thick holes with concentric rings. Insulation with thick glass wool to prevent any heat loss. Temperature range from ambient to 99°C with an accuracy of ±1ºC and is controlled by Microprocessor PID controller fitted with Neon Lamp, indicator main switch and workable on 220 V. 50 Hz single phase AC. Provided with drain and port for thermometer.

Inner Chamber made of Stainless Steel and available in following sizes.

300 mm x 250 mm x 100 mm ( 6 holes of 75 mm dia)
300 mm x 350 mm x 100 mm ( 9 holes of 75 mm dia)
350 mm x 400 mm x 100 mm (12 holes of 75 mm dia)
